Manufacturers of Bull Plug, Bull Plug for Oil and Gas Industries, Bull Plug Dimensions, API 6A Bull Plug Pipe Fitting, BS3799 Hex Bull Plug, ANSI B16.11 NPT Threaded Bull Plug, High Pressure Screwed Bull Plugs.

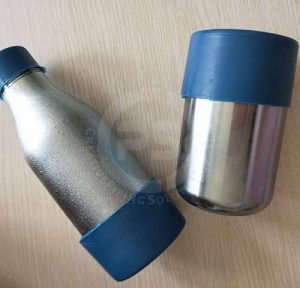

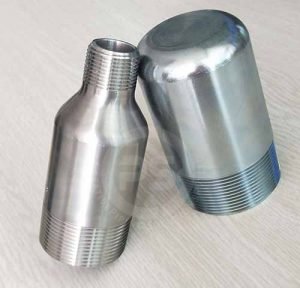

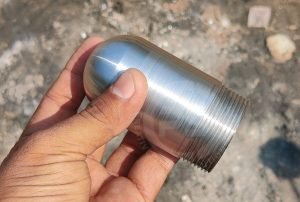

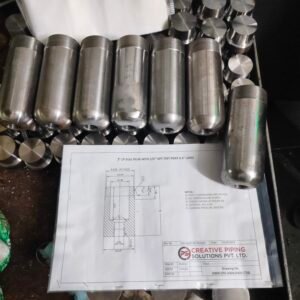

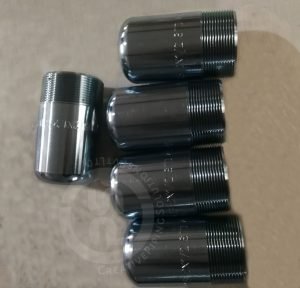

Bull Plug Fitting:
Bull Plug Pipe Fittings are used in the conduits or wellbore tubular, piping system. It is a threaded nipple with a rounded, closed-end, which is used to close off the end of a line or stop up a hole or a solid plug used as an isolation device in the piping system. During maintenance operation, Bull Plugs prove a means of draining a line.
Threaded Bull Plug are manufactured from A105 bar stock in accordance with MSS SP-95. Nominal Pipe Sizes range from 1/8″ through 4″. Hex Bull Plug available in standards Schedule 40, Double extra heavy or solid, extra heavy Schedule 160, Schedule 80. High-Pressure Bull Plugs are produced with end finishes, square-cut (for socket weld), grooved, threaded (as per ASME B1.20.1), or beveled (as per ASME B16.25). all dimensions are in inches and weights based on the material used to produce bull plugs such as carbon steel, stainless steel, high nickel alloys, etc.
A plug to close off the line: Bull plug is a short part with one threaded end and one rounded closed end that is used to plug off the bottom end of down-hole logging instruments from borehole fluids.
Manufacturers of Grooved Nipple, Swage Nipple Fitting, Grooved Pipe Nipples, 1 x 3/4 Swage Nipple, 2 x 1/2 Swage Nipple, 2 x 3/4 Swage Nipple, 2 x 1 Swage Nipple Dimensions, 3 x 2 Swage Nipple Dimensions, and 6 x 4 Swage Nipple.

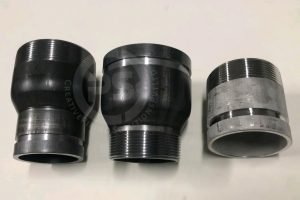

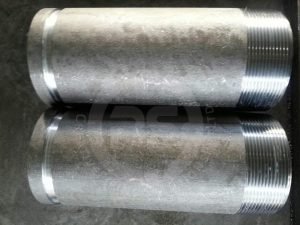

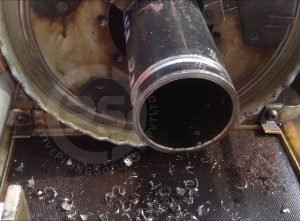

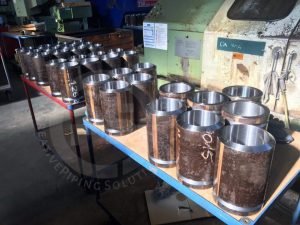

Grooved Swage Nipple:
Grooved swage nipples are mostly used in mining, industrial or commercial construction, and process piping applications. There are three common configurations Groove x MPT, Groove x Groove, and Groove x Bevel. They are available in an enormous range of sizes from 1-1/2″ to 12″ and are fully interchangeable with popular groove pipe fittings brands such as Victaulic & Shurjoint fittings.
Swage Pipe Nipples can be order by providing following information such as: Diameter, Thickness or Schedule, Material (Stainless Steel/ Carbon Steel/ Brass/ Iron/ Aluminium/ High Nickel Alloys/ Copper/ Cast Iron), End Connections (Grooved/ Bevelled Ends/ Threads/ Seamless/ Bended/ Square Cut Ends/ Barbed), Technical Specifications like Temperatures, Pressures, Conformity to the standards, Safety coefficients, Standard, Certifications, Extra duty, Double duty, Extra double duty, etc.
Manufacturers of Pipe Nipple, Barrel Nipple, Close Nipple / Running Nipple, Hexagonal Nipple, Reducing Nipple / Unequal Nipple, Hose Nipple, Welding Nipple, Swage Nipple in India
Pipe Nipple:
Pipe nipple is short segment of steel pipe made of different materials (eg. Stainless Steel, High Nickel Alloys) mostly with male or external threads in one end or both ends for connecting two fittings or pipes, which are used to make a watertight seal when connecting piping to threaded fittings, valves or equipment. Threads used on nipples are BSP, BSPT, NPT, NPSM and Metric.
Same or different types of thread may be used when Nipples has two side threads such as NPT thread to BSP Thread nipples are also available. there is a short distance of unthreaded steel pipe between two sides of threads. where there is no long unthreaded pipe betweend two end of nipple threads it is called as ‘running nipple’ or ‘close nipple’. Pipe nipples are in lengths up to 12”, lengths over 12” are referred to as ready cut pipe the thread specifications are identical however the tolerance on the length is less stringent on ready cut pipe. We are leading exporters of Black Pipe Nipple, Galvanized Pipe Nipples, Seamless pipe nipples, Stainless steel pipe nipples, Brass pipe nipples, King Nipples, and Aluminum Pipe Nipples in varied countries such as Egypt, Turkey, Iran, Iraq, Saudi Arabia, Yemen, Syria, Jordan, United Arab Emirates, Israel, Lebanon, Palestine, Oman, Kuwait, Qatar, and Bahrain.
The Pipe Nipple is also known as Barrel Nipples. Barrel Nipples are a piece of steel pipe that has NPT threads on both sides with an unthreaded section in the middle as shown in the image gallery. It is also referred to as T.B.E which stands for ‘Threaded Both Ends’. When we are considering the length of Barrel Nipples, the length is specified by the overall length including threads on each side.
Barrel Nipples or Pipe Nipples are used to connect pipes or other fittings in the same diameters. As we previously discussed that it is simple pipe nipples so it can be simply made from a piece of steel pipes of different materials and grades.
Close Pipe Nipple:
The close nipple is also referred to as the Running Nipple, this type of pipe nipple has no unthreaded area in between both side threads on the pipe nipples, depending on how far apart you need the attached fittings to be.
Connected Fittings or pipes come close to touching one another and a very small area of the nipple is visible, it is called a close or running nipple. Close nipples are ordered by the close diameter for example 1/4″ x close.
Close Nipples are difficult to work with as compared to other types of nipples. Close nipples are unscrewed by gripping one end of the thread with the help of a pipe wrench which might damage the threads in the nipples, but this will damage the thread and cause leakage and necessitate replacing it. to solve this issue we can use ‘nipple wrench’ or ‘internal pipe wrench’ which grips the inside of the pipe, leaving threads undamaged.
Hex Pipe Nipple:
A hex pipe nipple gets its name from the hexagonal shape in the middle section of a nipple. To unscrewed nipple’s hexagonal shape allows for a wrench to grasp it securely without damaging the threads, as it provides a greater mechanical advantage than normally rounded shape nipples. if you find hex nipples with different sizes on each end, it is called an unequal or reducer nipple.
If more distance between the threaded ends of nipples then it is referred to as ‘long hexagonal nipples’. This hexagonal part is useful for a wrench to grasp when needing torque, loose, or tightening.
Hose Nipple:
Pipe Nipple has one special type of Nipple called ‘hose nipple’ that is used to connect smooth hose and threaded pipes. One end of the nipple is a hose barb and the other end is an external thread. The size of the hose barb can be reduced as the size of the pipe connection, or it can be the same. hose nipple is used to connect the piping system to tubing.
Pipe Nipple Fittings Gallery:
Pipe Nipple Fittings Applications:
Manufacturing & Distribution
Oil, Gas & Petro Chem
Agriculture
Beverage & Brewery
Water & Plumbing
Hydraulic & Pumping
Waste incineration
Pulp & paper
Pipe Nipple Drawings:
Dimensions & Sizes for Pipe Nipples and Hexagonal Nipples
Nom.Pipe Size
L
Plain End Weight(kg/m)
Close Nipple
Short Nipple
Long Nipple
Sch40/STD
Sch80/XS
Sch160
XXS
1/8”
3/4”
1-1/2”
2”~12”
0.37
0.47
1/4”
7/8”
1-1/2”
2”~12”
0.63
0.8
3/8”
1”
1-1/2”
2”~12”
0.84
1.1
1/2”
1-1/8”
1-1/2”
2”~12”
1.27
1.62
1.95
2.55
3/4”
1-3/8”
2”
2-1/2”~12”
1.69
2.2
2.9
3.64
1”
1-1/2”
2”
2-1/2”~12”
2.5
3.24
4.24
5.45
1-1/4”
1-5/8”
2-1/2”
3”~12”
3.39
4.47
5.61
7.77
1-1/2”
1-3/4”
2-1/2”
3”~12”
4.05
5.41
7.25
9.55
2
2”
2-1/2”
3”~12”
5.44
7.48
11.11
13.44
2-1/2”
2-1/2”
3”
3-1/2”~12”
8.63
11.41
14.92
20.39
3”
2-5/8”
3”
3-1/2”~12”
11.29
15.27
21.35
27.68
3-1/2”
2-3/4”
4”
4-1/2”~12”
13.57
18.64
4”
2-7/8”
4”
4-1/2”~12”
16.08
22.32
33.54
41.03
5”
3”
4-1/2”
5”~12”
21.77
30.97
49.12
57.43
6”
3-1/8”
4-1/2”
5”~12”
28.26
42.56
67.57
79.22
Dimensions in Millimeters
Weight in accordance with ASME B36.10M
Weld bevel in accordance with ASME B16.25
Thickness in accordance with ASME B1.20.1
Nominal Size
A
W
E
b
C
F
DN
Inch
(Min.)
(Min.)
(Min.)
3000
6000
(Min.)
(Min.)
6
1/8″
11
26
10
5
2
6
–
8
1/4″
15
36
15
8
6
6
–
8×6
1/4″×1/8″
15
31
15
5
2
6
10
10
3/8″
18
40
16
11
8
8
–
10×8
3/8″×1/4″
18
39
16
8
6
8
15
15
1/2″
22
48
20
14
11
8
–
15×10
1/2″×3/8″
22
44
20
11
8
8
16
15×8
1/2″×1/4″
22
43
20
8
6
8
15
20
3/4″
27
52
21
19
13
10
–
20×15
3/4″×1/2″
27
50
21
14
11
9
20
20×10
3/4″×3/8″
27
46
21
11
8
9
16
25
1″
35
60
25
24
17
10
–
25×20
1″×3/4″
35
56
25
19
13
10
21
25×15
1″×1/2″
35
55
25
14
11
10
20
40
1-1/2″
50
68
26
38
30
16
–
40×25
1-1/2″×1″
50
67
26
24
17
16
25
40×20
1-1/2″×3/4″
50
63
26
19
13
16
21
40×15
1-1/2″×1/2″
50
62
26
14
11
16
20
50
2″
62
71
27
49
39
17
–
50×40
2″×1-1/2″
62
70
27
38
30
17
26
50×25
2″×1″
62
70
27
24
17
18
25
50×20
2″×3/4″
62
65
27
19
13
17
21
50×15
2″×1/2″
62
65
27
14
11
18
20
Pipe Nipple Ordering Information:
Below properties must be specified while ordering Pipe Nipples
Technical Specifications like Safety coefficients, Temperatures, Pressures, Standard, Certifications, Conformity to the standards, Extra duty, Double duty, Extra double duty, etc.
Manufacturers of MSS SP-97 Branch Outlet Fittings, Welding Outlet Fittings, Nipple Outlet Pipe Fitting, Socket Weld Outlet Fitting, Threaded Outlet Fittings, Elbow Outlet Fitting in India.
Branch Connection Fittings:
Branch Connection Fitting is also named as Outlet fittings. Outlets are a family of forged products used to make 90 degree or 45 degrees integrally reinforced branch connections from a header pipe or run pipe to an outlet pipe or branch pipe. Outlet fittings have some outstanding advantages such as low cost, reliability and safety, standardization, simple construction, convenient design selection, and improved media flow channels. Outlets come with threaded, socket-weld, and butt-weld end connections. Branch fittings are available in all dimensions, bores, types (i.e. welding outlet, Nipple Outlet, Socket Weld Outlet, Threaded Outlet, Elbow Outlet), sizes, and classes, in a wide range of stainless steel, chrome-moly, and other alloys.
To place an outlet instead of the tee, A hole is cut in the side of the pipe, the Outlets are welded in place over the hole and then the additional length of pipe is attached to the outlet. Sometimes the run size is given as a possible range or consolidation. this means the outlet can be used on several different pipe sizes. for example, a 36-3 x 1 outlet could be used to branch 1″. pipe off of any run pipe from 3″ up through 36″.
Branch Outlet Fittings Specifications:
Manufacture Standards: MSS SP-97, BS3799, ASME B16.11, GB19236 etc. Rate: 3000LBS~9000LBS / SCH10S ~ SCHXXS for butt-weld end. Dimension: 1/2” to 24” (DN15 ~DN600).
Standards
Description
MSS-SP-97
Basic tolerances for the manufacturing of branch outlets
ASME-B31.1
How to perform design reinforcement for branch outlets
Creative Piping Solutions designed and manufacture welding outlet Fittings to minimize stress concentrations and provide integral reinforcement. MSS-SP 97 welding outlet is the most popularly used branch connection fitting falling under the buttweld fittings family. Buttweld Outlets are available in a wide range of dimensions. It is well-suited for high-pressure weight applications. There are three pressure grade STD, XS, and Sch160 for the welding outlet.
Buttweld Branch Outlet is contoured to match the curve on the headed pipe and beveled on the branch side to mate up with a beveled piece of the branch pipe. We are leading producers of welding outlet using ASME B16.11, B16.9, ASME B16.25, and EN Standards. The most popular purchase materials of Welding Outlets are A105 and A234. We are the topmost exporters of Class 3000 Long welding outlet in the UK and UAE.
Nipple Outlet Pipe Fitting:
Nipple Outlet is mostly used for valve installation and exhaust. ASME B16.11 Nipple Outlets are manufactured in lengths ranging from 3.1/2 inches to 6.1/2 inches and for Sch 160, XS, and XXS schedules. ASTM A105 Nipple Outlet Manufactured for Extra Strong and Double Extra Strong applications in Class 6000, Clase 3000. Available with male-socket weld or male threaded outlets.
Socket Weld Outlet Fitting:
A MSS SP-97 Socket Weld Outlet has the same basic design as a welding outlet and Threaded Outlet where the major difference is that the branch pipe is connected to the run pipe, via the fitting, with a socket weld connection as per ASME B16.11. Socket Weld Outlets belong to the “socket fittings” family and are available in Class 3000, Class 6000, and Class 9000. ASTM A182 and A105 Socket Weld Outlet are used for lower pressure applications, and smaller pipe diameters (as compared to welding outlets).
Threaded Outlet Fittings:
MSS SP 97 Threaded Outlet and ASME B16.11 Threaded Outlet is a type of branch connection and it is threaded without welding. Threaded Outlets are used for low-pressure 90-degree pipe branches. The threading is generally of the NPT type and conforms to the ASME B1.20.1 specification. A105 Threaded Outlet is available in the size range of 1/2″ to 2″ and is welded over a hole either drilled or burned in the pipe. The pressure s usually Class 3000 and Class 6000.
Threaded Branch Outlet is contoured to match the curve of the header pipe and the branch side of the fitting has an NPS thread according to ASME B1.20.1. Normally, Thread Branch Outlet Fittings are used for NPS under 2″. Creative Piping Solutions is ISO certified supplier and exporter of Threaded Outlet Fittings in the UK, UAE, and Australia.
Elbow Outlet Fitting:
We are manufacturers of Elbow Outlet Branch Fittings using ASME B16.9 and MSS SP-97 Standards. Elbow Outlet is used to provide branch connections on 90 or 180 degrees short radius elbows(seldom used) or long radius elbows(most common). Elbow Outlets are available with socket weld/threaded connections or with butt weld connections in class 3000 or class 6000.
Branch Outlet Fittings Gallery:
How to determine outlet type:
Header Size
Connection Type
1/2″ thru 6″ NPS
Socket-weld or Threaded
8″ thru 36″ NPS
Socket-weld, Threaded or Butt-weld
42″ & larger NPS
Butt-weld Only
Class Vs Type of Outlet Fittings (MSS SP-97):
OUTLET FITTINGS
CLASS
PIPE WALL
Threaded & Socket-Weld
3000
Extra Strong
Threaded & Socket-Weld
6000
Schedule 160
Socket-Weld
9000
XXH
Butt-weld
Standard
Standard
Butt-weld
Extra Strong
Extra Strong
Butt-weld
Schedule 160
Schedule 160
How to order Branch Fitting:
Header run pipe size. For Example in range of 36-22 size.
Branch pipe size for example 6 inches, i.e. NPS of the connecting pipe to the run pipe.
Branch pipe schedule for buttweld types of connections (check specification section for schedule range). Note: rating shall be provided for NPT threaded and socket weld Outlets
