Leading Manufacturers, Suppliers, and Exporters Carbon Steel Forged Fittings in Myanmar, Kuwait, Malaysia, Bahrain, Australia, Singapore

November 30, 2022 by Creative Piping Solution Pvt. Ltd. Creative Piping Solution Pvt. Ltd.

Carbon Steel Forged Fittings Manufacturers in Myanmar, in Kuwait

Leading Manufacturers, Suppliers, and Exporters of Carbon Steel Forged Fittings in Myanmar, Kuwait, Malaysia, Bahrain, Australia, Singapore

Leading Manufacturers Complete Guide of Carbon Steel Forged Fittings by – Malaysia, Bahrain, Myanmar, Kuwait.

Different types of steel are available in the market and some people assume that all steel is the same, but it’s not necessarily true. Every steel grade has its unique characteristics and benefits such as carbon steel’s increased strength, a high durability standard, free leak connection, and cost-effectiveness. The use of carbon makes iron — or steel — stronger by shuffling around its crystal lattice. It has a higher concentration of carbon than other types of steel.

Technique of creative durable carbon steel fittings is forged carbon steel fittings. During the manufacturing process, low or high carbonsteel is heated to molten temperatures, and the heated CS is then machined into the forged fittings in the dies.

Creative Piping Solutions is ISO certified Leading Manufacturers, Suppliers, and Exporters of C S Forged Fittings that cover threaded and socket weld fittings types such as Elbow, Tee, Cross, Coupling, End Cap, Bushing, Plug, Union, Nipple, Boss, Adapter, Reducer in Malaysia, Bahrain, Myanmar, Kuwait.

CarbonSteel Forged Fittings are widely used in various applications ranging from the petrochemical, chemical, power generation, and OEM manufacturing industries to other uses where vibration high pressure or highly corrosive conditions are required.

Characteristic of Carbon Steel Fittings:

Easy assembly and installation
Low Cost
They are available in a wide range of diameters
ASTM A860 WPHY 60 are Wrought High Yield fittings

CarbonSteel Forged Fittings Specifications

Specifications: ASTM A105 & ASME SA105, A105N, ASTM A350 LF2 & ASME SA350 LF2, ASTM A694 & ASME SA694, A694N
Size Range: 1/8″ NB to 4″ NB
Dimensional Standards: ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799
Pressure Class: 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS
Forged Type: Threaded / Screwed Fittings, Socketweld Fittings
Threads: NPT, BSPT, BSPP

Complete Tables and Drawings of Forged Fittings Dimensions

Carbon Steel ASTM A105, ASTM A350 LF2, ASTM A694 Forged Threaded and Socket Weld Fittings Dimensions:

CarbonSteel Forged Fittings Manufacturing Standards

ASTM A105 / A105M	Forged Fittings and valves and parts for high-temperature service. Standard Specification for Wrought Austenitic Carbon Steel A105 Forged Fittings
ANSI/ASME B1.20.1	Pipe threads, general purpose (inch).
BS21	Threading.
BS3799	Specification for Steel pipe fittings, screwed and Socket-welding for the petroleum industry
ANSI B16.11	Forged steel fittings socket-welding and threaded. Socket Welding and Threaded Forged Fittings

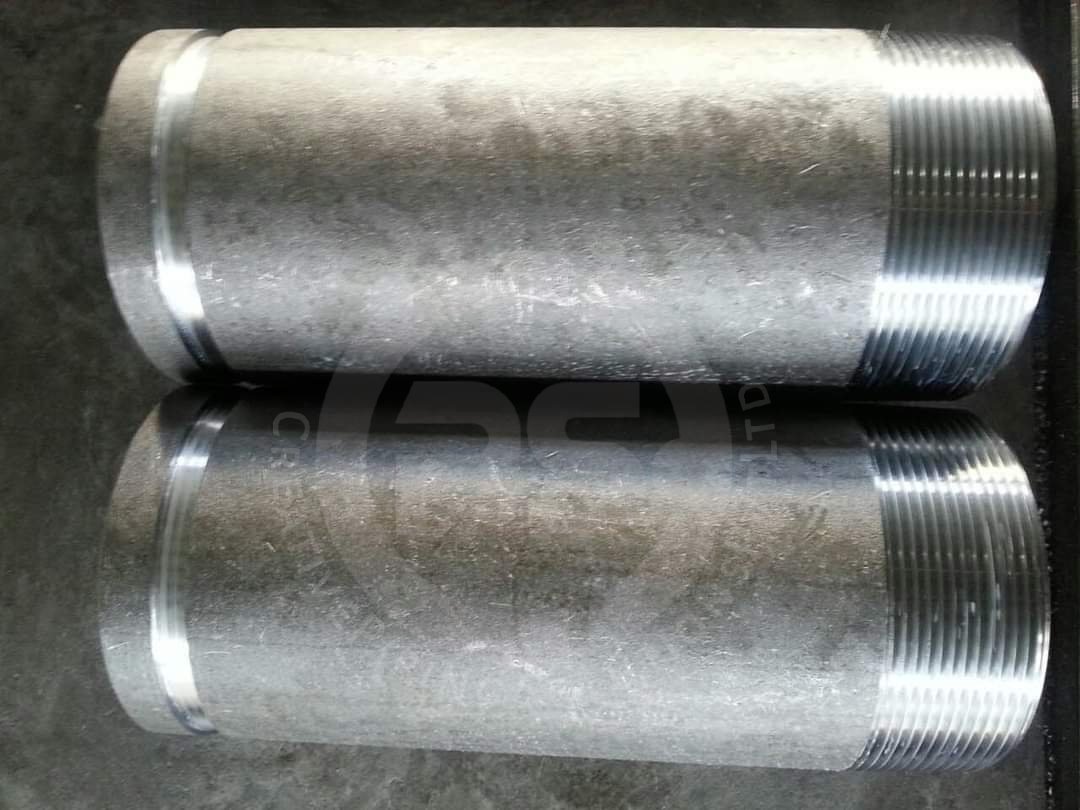

MSS SP-95	Swage(d) Nipples and Bull Plugs
ISO 4144	Carbon Steel A105 fittings threaded to ISO 7-1.

Creativepiping Leading Manufacturers, Suppliers, and Exporters
M: +91 90793 67689
E: sales@creativepiping.com
| www.creativepiping.com |
Creative Piping Solutions Private Limited | Mumbai | Maharashtra

November 21, 2022 by Creative Piping Creative Piping

Alloy 20 / 254 SMO / AISI 4130 Forged Fittings Manufacturers

Alloy 20 / 254 SMO / AISI 4130 Forged Fittings Manufacturers in India

Alloy 20 / 254 SMO / AISI 4130 Forged Fittings Manufacturers, Threaded and Socket Weld Fittings in the Grade Alloy 20, 254 SMO, and AISI 4130:

What is Forged Fittings:

Forged threaded and socket weld fittings are fittings made of forged steel. The process of manufacturing forged fittings includes: cutting and heating billets, putting pressure on heated billets under dies into the desired shape, trimming, and shot blasting. Then machine forged blank fittings for net shape and dimensions. The Dimensions of forged steel fittings usually conform to ASME (American Society of Mechanical Engineers) B16.11.

What is Alloy 20:

Alloy 20 also popularly known as Carpenter 20 alloy, is a nickel-iron-chromium-based, austenitic alloy with excellent corrosion resistance in chemical environments containing sulfuric acid and many other aggressive media. It is largely used in the industries such as chemical processing, petrochemical and refining, marine, pharmaceutical, and food processing.

Alloy 20 Forged Fittings Size: 1/8″~4″ (DN6~DN100).
Alloy 20 Forged Fittings Pressure Class: 2000LBS, 3000LBS, 6000LBS, 9000LBS.
Alloy 20 Forged Fittings Dimension: ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799.
Alloy 20 Forged Fittings Threads: ISO, DIN, NPT, BSPT.

What is 254 SMO:

254 SMO is a stainless steel grade and it is a very high-end austenitic stainless steel; mainly comprised of between 19.5% and 20.5% chromium, 17.5% to 18.5% nickel, 6% to 6.5% molybdenum and .18% to .22% nitrogen. It is designed with a combination of impact toughness resistance to chloride stress corrosion cracking and pitting and crevice corrosion with a strength twice that of the stainless steel 300 series stainless steel.

Industries that use UNS S31254: Flue gas desulfurization, Chemical, Food Processing, Desalination, Pulp and Paper, and Pharmaceutical.

254 SMO Socket Weld / Threaded Fittings Size: 1/8″~4″ (DN6~DN100).
254 SMO Socket Weld / Threaded Fittings Pressure Class: 2000LBS, 3000LBS, 6000LBS, 9000LBS.
254 SMO Socket Weld / Threaded Fittings Dimension: ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799.
254 SMO Forged Fittings Threads: ISO, DIN, NPT, BSPT.

What is AISI 4130:

Alloy steels are designated by AISI four-digit numbers. Grade 4130 is a low alloy C-steel containing chromium and molybdenum as strengthening agents. AISI 4130 is also commonly referred to as Chromoly steel or chrome moly steel. It can be welded easily because of the low carbon content in it. This low-alloy steel finds many applications as forgings in the aerospace and oil and gas industries – as forged valve bodies and pumps –, as well as in the automotive, agricultural, and defense industries.

Grade 4130 steel should be forged between 1230 and 950 º C (2250 and 1750 º F). The lower the finishing temperature from forging, the finer will be the grain size. Suppose the 4130 alloy steel is forged at too low a temperature. In that case, there is a risk of forming a non-uniform structure in certain areas of the forged part, necessitating a normalizing treatment, prior to further heat treatment.

AISI 4130 Forged Fittings(Socketweld / Threaded) Size: 1/8″~4″ (DN6~DN100).
AISI 4130 Forged Fittings(Socketweld / Threaded) Pressure Class: 2000LBS, 3000LBS, 6000LBS, 9000LBS.
AISI 4130 Forged Fittings(Socketweld / Threaded) Dimension: ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799.
AISI 4130 Forged Fittings Threads: ISO, DIN, NPT, BSPT.

TYPES OF FORGED FITTINGS MANUFACTURED IN GRADE AISI 4130, 254 SMO, and Alloy 20:

Couplings – This is used to join two plain end pipes together.
Elbows 45° and 90° – Used to make a 45-degree direction change in piping and a 90-degree turn in small piping respectively.
Half-Couplings – They’re used on big lines as a small bore branch.
Crosses – They are used sparingly because it is preferable to use two Tees for procurement.
Union – It is used to connect pipes of various diameters in cases where the pipe is dismantled frequently.
Tees – Using these fitting branches are connected at a 90° angle.
End Caps or Pipe Caps – They are used to close the dead end of a small bore pipe with a plain end.

Also Check: Forged Fittings Dimensions

November 16, 2022 by Creative Piping Creative Piping

Forged Fittings Dimensions

ASTM B16.11 Forged Fittings Diemntions – Threaded & Socket Weld

ASTM B16.11 Forged Fittings Dimensions, Forged Threaded and Socket Weld Fittings in the size range 1/2” to 4” and in pressure ratings Class

ASTM B16.11 is the international standard used in the manufacturing of Forged Fittings which include two types that are Forged Threaded Fittings and Forged Socket Weld Fittings. These High-Pressure Fittings are available in Various Materials like Stainless Steel, Carbon Steel, High Nickel Allys, and more.

It is produced in the Size range of 1/2” to 4”, and in pressure ratings Class 2000, 3000, 6000, and 9000. Pressure rating classes also differ in Threaded and Socket Weld Fittings, Class 2000, 3000, and 6000 for threaded fittings and Class 3000, 6000, and 9000 for socket-weld fittings.

Forged pipe fittings are manufactured by forging and machining solid steel and are available in various shapes like Elbow, Bushing, Cap, Cross, Coupling, Plug, Tee, End Cap, Union, Reducer, Reducer Insert, Boss, Nipple, Adapter, Outlet. It is used for associating or connecting pipes, pumps, valves, & other equipment to create a piping system below the size 2 or 4 inches in diameter.

Socket weld fittings connect to pipes by fillet welds and threaded fittings by screwing pipe onto the fittings. Normally Class 3000 fittings are used for pipes in schedule 80/XS; Class 6000 for pipes Sch. 160; Class 9000 fittings for pipes with larger wall thickness (XXS).

Creative Piping Solutions Pvt. Ltd. is one of the top manufacturers of High Pressure Forged Pipe Fittings in India. We are authorized Suppliers and Exporters of Threaded and Socket Weld Fittings in South Africa, Malaysia, Singapore, Qatar, Italy, Philippines, Australia, and Dubai, UAE.

Class of Fitting	Type of Fitting	SCH No.	Wall Designation
2000	Threaded	80	XS
3000	Threaded	160	–
6000	Threaded	–	XXS
3000	Socket-Welding	80	XS
6000	Socket-Welding	160	–
9000	Socket-Welding	–	XXS

Above Table: correlation of ASME B16.11 fittings Class with schedule number or wall designation of pipe for calculation of ratings.

ASME B16.11 Standard Scope:

This standard contains dimensions, pressure-temperature ratings, markings, tolerances, and material requirements for forged fittings. Custom-design forged fittings with special dimensions, threads, or counterbores may be made by agreement between the manufacturer and purchaser. All dimensions tables are given below.

ASME B16.11 45 Degree Elbow Dimensions

Dimensions in Millimeters.

Socket *Welding*
DN	Nom. Pipe Size	*B(2)*	*C(1)*	*D(2)*	*A(2)*	G (Min)	J (Min)
			*(Avg) I (Min)*

3000Lb

6	1/8	10.8	3.18	3.18	6.9	8.0	2.41	9.5
8	1/4	14.2	3.78	3.30	9.3	8.0	3.02	9.5
10	3/8	17.6	4.01	3.50	12.6	8.0	3.20	9.5
15	1/2	21.8	4.67	4.09	15.8	11.0	3.73	9.5
20	3/4	27.2	4.90	4.27	21.0	13.0	3.91	12.5
25	1	33.9	5.69	4.98	26.7	14.0	4.55	12.5
32	1-1/4	42.7	6.07	5.28	35.1	17.5	4.85	12.5
40	1-1/2	48.8	6.35	5.54	40.9	20.5	5.08	12.5
50	2	61.2	6.93	6.04	52.5	25.5	5.54	16.0
65 I	2-1/2	73.9	8.76	7.67	62.7	28.5	7.01	16.0
80	3	89.8	9.52	8.30	78.0	32.0	7.62	16.0
100	4	115.2	10.69	9.36	102.3	41.0	8.56	19.0

6000Lb

6	1/8	10.8	3.96	3.43	4.0	8.0	3.15	9.5
8	1/4	14.2	4.60	4.01	6.4	8.0	3.68	9.5
10	3/8	17.6	5.03	4.37	9.2	11.0	4.01	9.5
15	1/2	21.8	5.97	5.18	11.8	12.5	4.78	9.5
20	3/4	27.2	6.96	6.04	15.6	14.0	5.56	12.5
25	1	33.9	7.92	6.93	20.7	17.5	6.35	12.5
32	1-1/4	42.7	7.92	6.93	29.5	20.5	6.35	12.5
40	1-1/2	48.8	8.92	7.80	34.0	25.5	7.14	12.5
50	2	61.2	10.92	9.50	42.9	28.5	8.74	16.0

9000Lb

15	1/2	21.8	9.35	8.18	6.4	15.5	7.47	9.5
20	3/4	27.2	9.78	8.56	11.1	19.0	7.82	12.5
25	1	33.9	11.38	9.96	15.2	20.5	9.09	12.5
32	1-1/4	42.7	12.14	10.62	22.8	22.5	9.70	12.5
40	1-1/2	48.8	12.70	11.12	28.0	25.5	10.15	12.5
50	2	61.2	13.84	12.12	38.2	28.5	11.07	16.0

1. Average socket Wall Thickness around the periphery be no less than the listed values. The minimum values are permitted in localized areas.

Dimensions in Millimeters.

Threaded
DN	Nom. Pipe Size	Length of Thread. (Min)		C	G (Min)	H
		*B(2)*	*L2(2)*

2000Lb

6	1/8	6.4	6.7	17	3.18	22
8	1/4	8.1	10.2	17	3.18	22
10	3/8	9.1	10.4	19	3.18	25
15	1/2	10.9	13.6	22	3.18	33
20	3/4	12.7	13.9	25	3.18	38
25	1	14.7	17.3	28	3.68	46
32	1-1/4	17.0	18.0	33	3.89	56
40	1-1/2	17.8	18.4	35	4.01	62
50	2	19.0	19.2	43	4.27	75
65	2-1/2	23.6	28.9	52	5.61	92
80	3	25.9	30.5	64	5.99	109
100	4	27.7	33.0	79	6.55	146

3000Lb

6	1/8	6.4	6.7	17	3.18	22
8	1/4	8.1	10.2	19	3.30	25
10	3/8	9.1	10.4	22	3.51	33
15	1/2	10.9	13.6	25	4.09	38
20	3/4	12.7	13.9	28	4.32	46
25	1	14.7	17.3	33	4.98	56
32	1-1/4	17.0	18.0	35	5.28	62
40	1-1/2	17.8	18.4	43	5.56	75
50	2	19.0	19.2	44	7.14	84
65	2–1/2	23.6	28.9	52	7.65	102
80	3	25.9	30.5	64	8.84	121
100	4	27.7	33.0	79	11.18	152

6000Lb

6	1/8	6.4	6.7	19	6.35	25
8	1/4	8.1	10.2	22	6.60	33
10	3/8	9.1	10.4	25	8.98	38
15	1/2	10.9	13.6	28	8.15	46
20	3/4	12.7	13.9	33	8.53	56
25	1	14.7	17.3	35	9.93	62
32	1-1/4	17.0	18.0	43	10.59	75
40	1-1/2	17.8	18.4	44	11.07	84
50	2	19.0	19.2	52	12.09	102
65	2–1/2	23.6	28.9	64	15.29	121
80	3	25.9	30.5	79	16.64	146
100	4	27.7	33.0	79	18.67	152

(*) Dimension B is the minimum length of the perfect thread. The length of useful thread (B plus threads with fully formed roots and get crests) shall not be less than L2 (effective length of external thread) required by American National Standard for pipe threads (ANSI / ASME B1.20.1).

ASME B16.11 90 Degree Elbow Dimensions

Dimensions in Millimeters

*Socket Welding*
DN	Nom. Pipe Size	*B(Min)*	C		*D(Avg)*	A	G (Min)	J (Min)
			*(Avg)*	*(Min)*

3000Lb

6	1/8	10.8	3.18	3.18	6.9	11.0	2.41	9.5
8	1/4	14.2	3.78	3.30	9.3	11.0	3.02	9.5
10	3/8	17.6	4.01	3.50	12.6	13.5	3.20	9.5
15	1/2	21.8	4.67	4.09	15.8	15.5	3.73	9.5
20	3/4	27.2	4.90	4.27	21.0	19.0	3.91	12.5
25	1	33.9	5.69	4.96	26.07	22.5	4.55	12.5
32	1–1/4	42.7	6.07	5.28	35.1	27.0	4.85	12.5
40	1–1.2	48.8	6.35	5.54	40.9	32.0	5.08	12.5
50	2	61.2	6.93	6.04	52.5	38.0	5.54	16.0
65	2-1/2	73.9	8.76	7.67	62.7	41.0	7.01	16.0
80	3	89.8	9.52	8.30	78.0	57.0	7.62	16.0
100	4	115.2	10.69	9.35	102.3	66.5	8.56	19.0

6000Lb

6	1/8	10.8	3.96	3.43	4.0	11.0	3.15	9.5
8	1/4	14.2	4.60	4.01	6.4	13.5	3.68	9.5
10	3/8	17.6	5.03	4.37	9.2	15.5	4.01	9.5
15	1/2	21.8	5.97	5.18	11.8	19.0	4.78	9.5
20	3/4	27.2	6.96	6.04	15.6	22.5	5.56	12.5
25	1	33.9	7.92	6.93	20.7	27.0	6.35	12.5
32	1-1/4	42.7	7.92	6.93	29.5	32.0	6.35	12.5
40	1-1/2	48.8	8.92	7.80	34.0	38.0	7.14	12.5
50	2	61.2	10.92	9.50	42.9	41.0	8.74	16.0

9000Lb

15	1/2	21.8	9.35	8.18	6.4	25.5	7.47	9.5
20	3/4	27.2	9.78	8.56	11.1	28.5	7.82	12.5
25	1	33.9	11.38	9.96	15.2	32.0	9.09	12.5
32	1-1/4	42.7	12.14	10.62	22.8	35.0	9.70	12.5
40	1-1/2	48.8	12.70	11.12	28.0	38.0	10.15	12.5
50	2	61.2	13.84	12.12	38.2	54.0	11.07	16.0

(1) Average socket Wall Thickness around the periphery shall be no less than the listed values. The minimum values are permitted in localized areas.

Dimensions in Millimeters.

*Threaded*
DN	*Nom. Pipe Size*	Length of Thread. (Min)		A	G (Min)	H
		*B()**	**L2()***

2000Lb

6	1/8	6.4	6.7	21	3.18	22
8	1/4	8.1	10.2	21	3.18	22
10	3/8	9.1	10.4	25	3.18	25
15	1/2	10.9	13.6	28.0	3.18	33
20	3/4	12.7	13.9	33	3.18	38
25	1	14.7	17.3	38	3.68	46
32	1-1/4	17.0	18.0	44	3.89	56
40	1–1/2	17.8	18.4	51	4.01	62
50	2	19.0	19.2	60	4.27	75
55	2-1/2	23.6	28.9	76	5.61	92
80	3	25.9	30.5	86	5.99	109
100	4	27.7	33.0	106	6.55	146

3000Lb

6	1/8	6.4	6.7	21	3.18	22
8	1/4	8.1	10.2	25	3.30	25
10	3/8	9.1	9.1	28	3.51	33
15	1/2	10.9	13.6	33	4.09	38
20	3/4	12.7	13.9	38	4.32	46
25	1	14.7	17.3	44	4.98	56
32	1-1/4	17.0	18.0	51	5.28	62
40	1-1/2	17.8	18.4	60	5.56	75
50	2	19.0	19.2	64	7.14	84
65	2-1/2	23.6	28.9	83	7.65	102
80	3	25.9	30.5	95	8.84	121
100	4	27.7	33.0	114	11.18	152

6000Lb

6	1/8	6.4	6.7	25	6.35	25
8	1/4	8.1	10.2	28	6.60	33
10	3/8	9.1	10.4	33	6.98	38
15	1/2	10.9	13.6	38	8.15	46
20	3/4	12.7	13.9	44	8.53	56
25	1	14.7	17.3	51	9.93	62
32	1-1/4	17.0	18.0	60	10.59	75
40	1-1/2	17.8	18.4	64	11.07	84
50	2	19.0	19.2	83	12.09	102
65	2-1/2	23.6	28.9	95	15.29	121
80	3	25.9	30.5	106	16.64	146
100	4	27.7	33.0	114	18.67	152

Dimension B is the minimum length of a perfect thread. The length of useful thread (B plus threads with fully formed roots and flat crests) shall not be less than L2 (effective length of external thread) required by American National Standard for pipe threads (ANSI I ASME B1.20.1).

ASME B16.11 Bushing Dimensions

Dimensions in Millimeters

Hex Head Plug
DN	Nom. Pipe Size	A (Min)	F (Nom)	H (Min)
6	1/8	10	11.11	6
8	1/4	11	15.88	6
10	3/8	13	17.46	8
15	1/2	14	22.23	8
20	3/4	16	26.99	10
25	1	19	34.93	10
32	1-1/4	21	44.45	14
40	1-1/2	21	50.80	16
50	2	22	63.50	18
65	2-1/2	27	76.20	19
😯	3	28	88.90	21
100	4	32	117.48	25

Dimensions in Millimeters.

Hex Head gushing
DN	Nom. Pipe Size	A (Min)	F (Non)	G (Min)
8	1/4	11	15.88	3
10	3/8	13	17.46	4
15	1/2	14	22.23	5
20	3/4	16	26.99	6
25	1	19	34.93	6
32	1-1/4	21	44.45	7
40	1-1/2	21	50.80	8
50	2	22	63.50	9
65	2-1/2	27	76.20	10
80	3	28	88.90	10
100	4	32	117.48	13

CAUTIONARY NOTE REGARDING HEX BUSHINGS.
Hex Head Bushings of one-size reduction should not be used in services where they might be subject to harmful loads and forces than internal’ pressures.

ASME B16.11 Cap Dimensions

Dimensions in Millimeters.

Socket Welding
DN	Nom Pipe Size	B (Min)	C		K (Min)	J (Min)
			(Avg)	(Min)

3000Lb

6	1/8	10.8	3.18	3.18	4.8	9.5
8	1/4	14.2	17.8	3.30	4.8	9.5
10	3/8	17.6	4.01	3.50	4.8	9.5
15	1/2	21.8	4.67	4.09	6.4	9.5
20	3/4	27.2	4.90	4.27	6.4	12.5
25	1	33.9	5.69	4.98	9.6	12.5
32	1–1/4	42.7	6.07	5.28	9.6	12.5
40	1-1/2	48.8	6.35	5.54	11.2	12.5
50	2	61.2	6.93	6.04	12.7	16.0
65	2-1/2	73.9	8.76	7.67	15.7	16.0
😯	3	89.8	9.52	8.30	19.0	16.0
100	4	115.2	10.69	9.35	22.4	19.0

6000Lb

6	1/8	10.8	3.96	3.43	6.4	9.5
8	1/4	14.2	4.60	4.01	6.4	9.5
10	3/8	17.6	5.03	4.37	6.4	9.5
15	1/2	21.8	5.97	5.18	7.9	9.5
20	3/4	27.2	6.96	6.04	7.9	12.5
25	1	33.9	7.92	6.93	11.2	12.5
32	1-1/4	42.7	7.92	6.93	11.2	12.5
40	1-1/2	48.8	8.92	7.80	12.7	12.5
50	2	61.2	10.92	9.50	15.7	16.0

9000Lb

15	1/2	21.8	9.35	8.18	11.2	9.5
20	3/4	27.2	9.78	8.56	12.7	12.5
25	1	33.9	11.38	9.96	14.2	12.5
32	1–1/4	42.7	12.14	10.62	14.2	12.5
40	1-1/2	48.8	12.70	11.12	15.7	12.5
50	2	61.2	13.84	12.21	19.0	16.0

(1) Average socket Wail Thickness around the periphery shall be no less than the listed values. The minimum values are permitted in localized areas.

Dimensions are in Millimeters.

Threaded
	Nom	Length of Thread.
DN	Pipe	(Min)	P	D	G
	Size	B \| L2			(Min)

3000Lb

6	1/8	6.4	6.7	19	16	4.8
8	1/4	8.1	10.2	25	19	4.8
10	3/8	9.1	10.4	25	22	4.8
15	1/2	10.9	13.6	32	28	6.4
20	3/4	12.7	13.9	37	35	6.4
25	1	14.7	17.3	41	44	9.7
32	1-1/4	17.0	18.4	44	57	9.7
40	1–1/2	17.8	18.4	44	64	11.2
50	2	19.0	19.2	48	76	12.7
65	2-1/2	23.6	28.9	60	92	15.7
80	3	25.9	30.5	65	108	19.0
100	4	27.7	33.0	68	140	22.4

6000Lb

8	1/4	8.1	10.2	27	25	6.4
10	3/8	9.1	10.4	27	32	6.4
15	1/2	10.9	13.6	33	38	7.9
20	3/4	12.7	13.9	38	44	7.9
25	1	14.7	17.3	43	57	11.2
32	1-1/4	17.0	18.4	46	64	11.2
40	1-1/2	17.8	18.4	48	76	12.7
50	2	19.0	19.2	51	92	15.7
65	2-1/2	23.6	28.9	64	108	19.0
80	3	25.9	30.5	68	127	22.4
100	4	27.7	33.0	75	159	28.4

Dimension B is the minimum length of the perfect thread. The length of useful thread (B plus threads with fully formed roots and flat crests) shall not be less than L2 (effective length of external thread) required by the American National Standard for pipe threads (ANSI ASME B1.20.1).

ASME B16.11 Cross Dimensions

Dimensions in Millimeters.

Socket Welding
Nom , DN Pipe Size	*B(2)*	C(1)		D(2)	A(2)	J (Min)
		*(Avg)*	*(Min)*

3000Lb

6	1/8	10.8	3.18	3.18	6.9	11.0	9.5
8	1/4	14.2	3.78	3.30	9.3	11.0	9.5
10	3/8	17.6	4.01	3.50	12.6	13.5	9.5
15	1/2	21.8	4.67	4.09	15.8	15.5	9.5
20	3/4	27.2	4.90	4.27	21.0	19.0	12.5
25	1	33.9	5.69	4.98	26.7	22.5	12.5
32	1-1/4	42.7	6.07	5.28	35.1	27.0	12.5
40	1-1/2	48.8	6.35	5.54	40.9	32.0	12.5
50	2	61.2	6.93	6.04	52.5	38.0	16.0
65	2-1/2	73.9	8. 76	7.67	62.7	41.0	16.0
80	3	89.8	9.52	8.30	78.0	57.0	16.0
100	4	115.2	10.69	9.35	102.3	66.5	19.0

6000Lb

16	1/8	10.8	3.96	3.43	4.0	11.0	9 .5
8	1/4	14.2	4.60	4.01	6.4	13.6	9.5
10	3/8	17.6	5.03	4.37	9.2	15.5	9.5
15	1/2	21.8	5.97	5.18	11.8	19.0	9.5
20	3/4	27.2	6.96	6.04	15.6	22.5	12.5
25	1	33.9	7.92	6.93	20.7	27.0	12.5
32	1-1/4	42.7	7.92	6.93	29.5	32.0	12.5
40	1-1/2	48.8	8.92	7.80	34.0	38.0	12.5
50	2	61.2	10.92	9.50	42.9	41.0	16.0

9000Lb

15	1/2	21.8	9.35	8.18	6.4	25.5	9.5
20	3/4	27.2	9.78	8.56	11.1	28.5	12.5
25	1	33.9	11.38	9.96	15.2	32.0	12.5
32	1–1/4	42.7	12.14	10.62	22.8	35.0	12.5
40	1-1/2	48.8	12.70	11.12	28.0	38.0	12.5
50	2	61.2	13.84	12.12	38.2	54.0	16.0

(1) Average socket Wall Thickness around the periphery shall be no less than the listed values. The minimum values are permitted in localized areas.

Dimensions in Millimeters.

*Threaded*
DN	Nom Pipe Size	Length of Thread. ( min)		A	H
		**B()***	**L2()***

2000Lb

6	1/8	6.4	6.7	21	22
8	1/4	8.1	10.2	21	22
10	3/8	9.1	10.4	25	25
15	1/2	10.9	13.6	28	33
20	3/4	12.7	13.9	33	38
25	1	14.7	17.3	38	46
32	1-1/4	17.0	18.0	44	56
40	1-1/2	17.8	18.4	51	62
50	2	19.0	19.2	60	75
65	2-1/2	23.6	28.9	76	92
80	3	25.9	30.5	86	109
100	4	27.7	33.0	106	146

3000Lb

6	1/8	6.4	6.7	21	22
8	1/4	8.1	10.2	25	25
10	3/8	9.1	10.4	28	33
15	1/2	10.9	13.6	33	38
20	3/4	12.7	13.9	38	46
25	1	14.7	17.3	44	56
32	1-1/4	17.0	18.0	51	62
40	1-1/2	17.8	18.4	60	75
50	2	19.0	19.2	64	84
65	2-1/2	23.6	28.9	83	102
80	3	25.9	30.5	95	121
100	4	27.7	33.0	114	152

6000Lb

6	1/8	6.4	–	6.7	–	25	25
8	1/4	8.1	–	10.2	–	28	33
10	3/8	9.1	–	10.4	–	33	38
15	1/2	10.9	–	13.6	–	38	46
20	3/4	12.7	–	13.9	–	44	56
25	1	14.7	–	17.3	–	51	52
32	1-1/4	17.0	–	18.0	–	60	75
40	1-1/2	17.8	–	18.4	–	64	84
50	2	19.0	–	19.2	–	83	102
65	2–1/2	23.6	–	28.9	–	95	121
80	3	25.9	–	30.5	–	106	146
100	4	27.7	–	33.0	–	114	152

Dimension B is the minimum length of the perfect thread. the length of useful thread (B plus threads with fully formed roots and flat crests) shall not be less than L2 (effective length of external thread) required by American National Standard for pipe threads (ANSI ASME B1.20.1)

ASME B16.11 Full Coupling Dimensions

Dimensions in Millimeters.

*Socket Welding*
DN	Nom Pipe Size	*B(2)*	*C(1)*		*D(2)*	*E(2)*	j (Min)
			*(Avg)*	*(Min)*

3000Lb

6	1/8	10.8	3.18	3.18	6.9	6.5	9.5
8	1/4	14.2	3.78	3.30	9.3	6.5	9.5
10	3/8	17.6	4.01	15.0	12.6	6.5	9.5
15	1/2	21.8	4.67	4.09	15.6	9.5	9.5
20	3/4	27.2	4.90	42.7	21.0	9.5	125
25	1	33.9	5.69	4.98	26.7	12.5	12.5
32	1-1/4	42.7	6.07	5.28	35.1	12.5	12.5
40	1–1/2	46.8	6.35	5.54	40.9	12.5	12.5
50	2	61.2	6.93	6.04	52.5	19.0	16.0
65	2-1/2	73.9	8.76	7.67	62.7	19.0	16.0
80	3	89.8	9.52	8.30	78.0	19.0	16.0
100	4	115.2	10.69	9.35	102.3	19.0	19.0

6000Lb

6	1/8	10.8	3.96	3.43	4.0	6.5	9.5
8	1/4	14.2	4.60	401	6.4	6.5	9.5
10	3/8	17.6	5.03	4.37	9.2	6.5	9.5
15	1/2	21.8	5.97	5.18	11.8	9.5	9.5
20	3/4	27.2	6.96	6.04	15.6	9.5	12.5
25	1	31.9	7.92	6.93	20.7	12.5	12.5
32	1-1/4	42.7	7.92	6.93	29.5	12.5	12.5
40	1-1/2	46.8	6.92	17.80	34.0	12.5	12.5
50	2	61.2	10.92	9.50	42.9	19.0	16.0

9000Lb

15	1/2	21.6	9.35	8.15	6.4	9.5	9.5
20	3/4	27.2	9.78	8.56	11.1	9.5	12.5
25	1	33.9	11.38	9.96	15.2	12.5	12.5
32	1-1/4	42.7	12.14	10.62	22.8	12.5	12.5
40	1-1/2	48.8	12.70	11.12	28.0	12.5	12.5
50	2	61.2	13.84	12.12	38.2	19.0	16.0

(1) Average socket Wall Thickness around the periphery shall be no less than the listed values. The minimum values are permitted in localized areas.
(2) Reducer “C. J. E” in accordance with large size. “D” in accordance with small size. The others are in accordance with each size.

Dimensions Millimeters.

*Threaded*
DN	Nom. Pipe Size	Length of Thread. (Min)		w	D
		*B()**	**L2()***

3000Lb

6	1/8	6.4	6.7	32	16
8	1/4	8.1	10.2	35	19
10	3/8	9.1	10.4	38	22
15	1/2	10.9	13.6	48	28
20	3/4	12.7	13.9	51	35
25	1	14.7	17.3	60	44
32	1-1/4	17.0	18.4	67	57
40	1-1/2	17.8	18.4	79	64
50	2	19.0	19.2	86	76
65	2-1/2	23.6	28.9	92	92
80	3	25.9	30.5	108	108
100	4	27.7	33.0	121	140

6000Lb

6	1/8	6.4	6.7	32	22
8	1/4	8.1	10.2	35	25
10	3/8	9.1	10.4	38	32
15	1/2	10.9	13.6	48	38
20	3/4	12.7	13.9	51	44
25	1	14.7	17.3	60	57
32	1-1/4	17.0	18.4	67	64
40	1-1/2	17.8	18.4	79	76
50	2	19.0	19.2	86	92
65	2-1/2	23.6	28.9	92	108
80	3	25.9	30.5	108	127
100	4	27.7	33.0	121	159

Dimension B is the minimum length of the perfect Thread. The length of useful thread (B plus threads- with fully formed roots and flat crests) shall not be less than L2 (effective length of external thread) required by American National Standard for pipe threads (ANSI ASME B1_20.1)

ASME B16.11 Half Coupling Dimensions

Dimensions in millimeters

*Socket Welding*
DN	Nom. Pipe Size	*B(2)*	C(1)		D	F	j (Min)
			*(Avg)*	*(Min)*

3000Lb

6	1/8	10.8	3.18	3.18	6.9	16.0	9.5
8	1/4	14.2	3.78	3.30	9.3	16.0	9.5
10	3/8	17.6	4.01	3.50	12.6	17.5	9.5
15	1/2	21.8	4.67	4.09	15.8	22.5	9.5
20	3/4	27.2	4.90	4.27	21.0	24.0	12.5
25	1	33.9	5.69	4.98	26.7	28.5	12.5
32	1–1/4	42.7	6.07	5.28	35.1	30.0	12.5
40	1–1/2	48.8	6.35	5.54	40.9	32.0	12.5
50	2	61.2	6.93	6.04	52.5	41.0	16.0
65	2-1/2	73.9	8. 76	7.67	62.7	43.0	16.0
80	3	89.8	9.52	8.30	77.9	44.5	16.0
100	4	115.2	10.69	9.35	102.3	48.0	19.0

6000Lb

6	1/8	10.8	3.96	3.43	4.0	16.0	9.5
8	1/4	14.2	4.60	4.01	6.4	16.0	9.5
10	3/8	17.6	5.03	4.37	9.2	17.5	9.5
15	1/2	21.8	5.97	5.18	11.8	22.5	9.5
20	3/4	27.2	6.96	6.04	15.6	24.0	12.5
25	1	33.9	7.92	6.93	20.7	28.5	12.5
32	1-1/4	42.7	7.92	6.93	29.5	30.0	12.5
40	1-1/2	48.8	8.92	7.80	34.0	32.0	12.5
50	2	61.2	10.92	9.50	42.9	41.0	16.0

9000Lb

15	1/2	21.8	9.35	8.18	6.4	22.5	9.5
20	3/4	27.2	9.78	8.56	11.1	24.0	12.5
25	1	33.9	11.38	9.96	15.2	28.5	12.5
32	1-1/4	42.7	12.14	10.62	22.8	30.0	12.5
40	1-1/2	48.8	12.70	11.12	28.0	32.0	12.5
50	2	61.2	13.84	12.12	38.2	41.0	16.0

Average socket Wall Thickness around the periphery shall be no less than the listed values. The minimum values are permitted in localized areas

Dimensions in millimeters.

*Threaded*
DN	*Nom Pipe Size*	Length of Thread. (Min)		W	D
		**B()***	**L2()***

3000Lb

6	1/8	6.4	6.7	32	16
8	1/4	8.1	10.2	35	19
10	3/8	9.1	10.4	38	22
15	1/2	10.9	13.6	48	28
20	3/4	12.7	13.9	51	35
25	1	14.7	17.3	60	44
32	1-1/4	17.0	18.4	67	57
40	1-1/2	17.8	18.4	79	64
50	2	19.0	19.2	86	76
65	2-1/2	23.6	28.9	92	92
80	3	25.9	30.5	108	108
100	4	27.7	33.0	121	140

6000Lb

6	1/8	6.4	6.7	32	22
8	1/4	8.1	10.2	35	25
1 0	3/8	9.1	10.4	38	32
15	1/2	10.9	13.6	48	38
20	3/4	12.7	13.9	51	44
25	1	14.7	17.3	60	57
32	1-1/4	17.0	18.4	67	64
40	1-1/2	17.8	18.4	79	76
50	2	19.0	19.2	86	92
65	2-1/2	23.6	28.9	92	108
80	3	25.9	30.5	108	127
100	4	27.7	33.0	121	159

Dimension B is the minimum length of the perfect thread. The length of useful thread (B plus threads with fully formed root and, flat crests) shall not be less than L2 (effective length of external thread) required by American National Standard for pipe threads (ANSI I ASME B1.20.1).

ASME B16.11 Hex Head Plug Dimensions

Dimensions in Millimeters

*Hex Head Plug*
DN	Nom. Pipe Size	A (Min)	F (Nom)	H (Min)
6	1/8	10	11.11	6
8	1/4	11	15.88	6
10	3/8	13	17.46	8
15	1/2	14	22.23	8
20	3/4	16	26.99	10
25	1	19	34.93	10
32	1-1/4	21	44.45	14
40	1-1/2	21	50.80	16
50	2	22	63.50	18
65	2-1/2	27	76.20	19
😯	3	28	88.90	21
100	4	32	117.48	25

Dimensions in Millimeters.

*Hex Head gushing*
DN	Nom. Pipe Size	A (Min)	F (Non)	G (Min)
8	1/4	11	15.88	3
10	3/8	13	17.46	4
15	1/2	14	22.23	5
20	3/4	16	26.99	6
25	1	19	34.93	6
32	1-1/4	21	44.45	7
40	1-1/2	21	50.80	8
50	2	22	63.50	9
65	2-1/2	27	76.20	10
80	3	28	88.90	10
100	4	32	117.48	13

CAUTIONARY NOTE REGARDING HEX BUSHINGS.
Hex Head Bushings of one-size reduction should not be used in services where they might be subject to harmful loads and forces than internal’ pressures.

ASME B16.11 Round Head Plug Dimensions – Forged Fittings Dimensions

Dimensions in Millimeters.

Square Head Plug
DN	Nom. Pipe Size	A (Min)	B (Min)	C (Min)
6	1/8	10	6	7.15
8	1/4	11	6	9.55
10	3/8	13	8	11.11
15	1/2	14	10	14.29
20	3/4	16	11	15.88
25	1	19	13	20.64
32	1-1/4	21	14	23.81
40	1-1/2	21	16	28.58
50	2	22	18	33.27
65	2-1/2	27	19	38.10
80	3	28	21	42.86
100	4	32	25	63.50

Dimensions in Millimeters

Round Head Plug
DN	Nom_ Pipe Size	E (Nom)	D (Min)
6	1/8	10	35
8	1/4	14	41
10	3/8	18	41
15	1/2	21	44
20	3/4	27	44
25	1	33	51
32	1-1/4	43	51
40	1 -1/2	48	51
50	2	60	64
65	2-1/2	73	70
80	3	89	70
100	4	114	76

(1) ASME B16.11-2016 SIZE .2″ DATA “C”, WE CONVERT INCH DATA INTO MILLIMETERS.

ASME B16.11 Square Head Plug Dimensions

Dimensions in Millimeters.

Square Head Plug
DN	Nom. Pipe Size	A (Min)	B (Min)	C (Min)
6	1/8	10	6	7.15
8	1/4	11	6	9.55
10	3/8	13	8	11.11
15	1/2	14	10	14.29
20	3/4	16	11	15.88
25	1	19	13	20.64
32	1-1/4	21	14	23.81
40	1-1/2	21	16	28.58
50	2	22	18	33.27
65	2-1/2	27	19	38.10
80	3	28	21	42.86
100	4	32	25	63.50

Dimensions in Millimeters

Round Head Plug
DN	Nom_ Pipe Size	E (Nom)	D (Min)
6	1/8	10	35
8	1/4	14	41
10	3/8	18	41
15	1/2	21	44
20	3/4	27	44
25	1	33	51
32	1-1/4	43	51
40	1 -1/2	48	51
50	2	60	64
65	2-1/2	73	70
80	3	89	70
100	4	114	76

(1) ASME B16.11-2016 SIZE .2″ DATA “C”, WE CONVERT INCH DATA INTO MILLIMETERS.

ASME B16.11 90D Street Elbow Dimensions: Forged Fittings Dimensions

Dimensions in Millimeters.

Nom. Pipe
Size

G1
(Min)

G2(1)
(Min)

B(2)
(Min)

L2 (2)
(Min)

L
(MN)

3000Lb

6	1/6	19	19	25	3.18	2.74	6.4	6.7	10.0
8	1/4	25	22	32	3.30	3.22	8.1	10.2	11.0
10	3/8	32	25	38	3.15	3.50	9.1	10.4	13.0
15	1/2	38	28	41	4.09	4.16	10.9	13.6	14.0
20	3/4	44	35	48	4.32	4.88	12.7	13.9	16.0
25	1	51	44	57	4.98	5.56	14.7	17.3	19
32	1-1/4	62	51	66	5.28	5.56	17.0	18.0	21.0
40	1-1/2	70	54	71	5.56	6.25	17.8	18.4	21.0
50	2	84	64	84	7.14	7.64	19.0	19.2	22.0

6000Lb

5	1/8	25	22	32	5.08	4.22	6.4	6.7	10.0
8	1/4	32	25	38	5.66	5.28	8.1	10.2	11.0
10	3/8	38	28	41	6.98	5.59	9.1	10.4	13.0
15	1/2	44	35	48	8.15	6.53	10.9	13.6	14.0
20	3/4	51	44	57	8.53	6.86	12.7	13.9	16.0
25	1	62	51	66	9.93	7.95	14.7	17.3	19.0
32	1-1/4	70	54	71	10.59	8.48	17.0	18.0	21.0
40	1-1/2	84	64	84	11.07	8.89	17.8	18.4	21.0
50	2	102	83	105	12.09	9.70	19.0	19.2	22.0

(1) Wall thickness before threading
(2)Dimension B is the minimum length of the perfect thread. The length of useful thread (B plus threads with fully formed roots and flat crests) shall not be less than L2 (effective length of external thread) required by American National Standard for pipe Threads (ANSI / ASME B1.20.1)

ASME B16.11 Tee Dimensions – Forged Fittings Dimensions

Forged Fittings Dimensions Dimensions in Millimeters.

*Socket Welding*
DN	*Nom.* Pipe Size	B(2)	*c(1)* *(Avg)* *(Min)*	D(2)	A(2)	G *(Min)*	J *(Min)*

3000Lb

6	1/8	10.8	3.18	3.18	6.9	11.0	2.41	9.5
8	1/4	14.2	3.78	3.30	9.3	11.0	3.02	9.5
10	3/8	17.6	4.01	3.50	12.6	13.5	3.20	9.5
15	1/2	21.8	4.67	4.09	15.8	15.5	3.73	9.5
20	3/4	27.2	4.90	4.27	21.0	19.0	3.91	12.5
25	1	33.9	5.69	4.98	26.7	22.5	4.55	12.5
32	1-1/4	42.7	6.07	5.28	35.1	27.0	4.85	12.5
40	1-1/2	48.8	6.35	5.54	40.9	32.0	5.08	12.5
50	2	61.2	6.93	6.04	52.5	38.0	5.54	16.0
65	2-1/2	73.9	8.76	7.87	62.7	41.0	7.01	16.0
80	3	89.8	9.52	8.30	78.0	57.0	7.62	16.0
100	4	115.2	10.69	9.35	102.3	66.5	8.56	19.0

6000Lb

6	1/8	10.8	3.96	3.43	4.0	11.0	3.15	9.5
8	1/4	14.2	4.60	4.01	6.4	13.5	3.68	9.5
10	3/8	17.6	5.03	4.37	9.2	15.5	4.01	9.5
15	1/2	21.8	5.97	5.18	11.8	19.0	4.78	9.5
20	3/4	27.2	6.96	6.04	15.6	22.5	5.56	12.5
25	1	33.9	7.92	6.93	20.7	27.0	6.35	12.5
32	1-1/4	42.7	7.92	6.93	29.5	32.0	6.35	12.5
40	1-1/2	48.8	8.92	7.80	34.0	38.0	7.14	12.5
50	2	61.2	10.92	9.50	42.9	41.0	8.74	16.0

9000Lb

15	1/2	21.8	9.35	8.18	6.4	25.5	7.47	9.5
20	3/4	27.2	9.78	8.56	11.1	28.5	7.82	12.5
25	1	33.9	11.38	9.96	15.2	32.0	9.09	12.5
32	1-1/4	42.7	12.14	10.62	22.8	35.0	9.70	12.5
40	1-1/2	48.8	12.70	11.12	28.0	38.0	10.15	12.5
50	2	61.2	13.84	12.12	38.2	54.0	11.07	16 0

(1) Average socket wall Thickness around the periphery shall be no less than the listed values. The minimum values are permitted in localized areas

Dimensions in Millimeters.

*Threaded*
DN	Norm Pipe Size	*Length of* Thread.		A	G *(Min*)	H
		B	L2

2000Lb

6	1/8	6.4	6.7	21	3.18	22
8	1/4	8.1	10.2	21	3.18	22
10	3/8	9.1	10.4	25	3.18	25
15	1/2	10.9	13.6	28	3.18	33
20	3/4	12.7	13.9	33	3.18	38
25	1	14.7	17.3	38	3.68	46
32	1-1/4	17.0	18.0	44	3.89	56
40	1-1/2	17.8	18.4	51	4.01	62
50	2	19.0	19.2	60	4.27	75
65	2-1/2	23.6	28.9	76	5.61	92
80	3	25.9	30.5	86	5.99	109
100	4	27.7	33.0	106	6.55	146

3000Lb

5	1/8	6.4	6.7	21	3.18	22
8	1/4	8.1	10.2	25	3.30	25
10	3/8	9.1	10.4	28	3.51	33
15	1/2	10.9	13.6	33	4.09	38
20	3/4	12.7	13.9	38	4.32	46
25	1	14.7	17.3	44	4.98	56
32	1-1/4	17.0	18.0	51	5.28	62
40	1-1/2	17.8	18.4	60	5.56	75
50	2	19.0	19.2	64	7.14	84
65	2-1/2	23.6	28.9	83	7.65	102
80	3	25.9	30.5	95	8.84	121
100	4	27.7	33.0	114	11.18	152

6000Lb

6	1/8	6.4	6.7	25	6.35	25
8	1/4	8.1	10.2	28	6.60	33
10	3/8	9.1	10.4	33	6.98	38
15	1/2	10.9	13.6	38	8.15	46
20	3/4	12.7	13.9	44	8.53	56
25	1	14.7	17.3	51	9.93	62
32	1-1/4	17.0	18.0	60	10.59	75
40	1-1/2	17.8	18.4	64	11.07	84
50	2	19.0	19.2	83	12.09	102
65	2-1/2	23.6	28.9	95	15.29	121
80	3	25.9	30.5	106	16.64	146
100	4	27.7	33.0	114	18.67	152

Dimension B is the minimum length of the perfect thread. The length Of useful thread (B plus Threads with fully formed roots and flat crests) shall not be less than the L2 Reflective length of external thread)required by American National Standard for pipe threads (ANSI ASME B1.20.1).

Forged Fittings Types: Forged Fittings Dimensions

THREADED FITTINGS Forged Fittings Dimensions

SOCKET WELD FITTINGS

September 14, 2022 by Creative Piping Creative Piping

ASME B16.11 Socket Weld And Threaded Forged Fittings

PED Approved ANSI B16.11 Forged Fittings Manufacturers In India, Check ASME B16.11 Fittings Dimensions Chart.

A Fitting helps in joining multiple pipes to form a pipeline system. The pipes can be of different sizes and are used for measuring or regulating the flow. The ASME B16.11 Fittings are a standard in the world of forged steel fittings. It includes socket weld and threaded types.

We manufacture:

We manufacture them with different types of material like alloy steel, stainless steel, Carbon Steel Threaded Fittings, aluminum, copper, etc., depending on the purpose of usage. These fittings are great for environments that possess a chance of fire hazard. The Stainless Steel Threaded Fittings are one of the oldest methods of joining and are primarily used in places where welding is not an option.

The ASME B16.11 Pipe Fittings Dimensions are perfect for providing quick and swift piping connections at an affordable price. Various industries like Chemical, Machineries and Equipment, Power Stations, etc., uses ASME B16.11 Socket Weld Fittings for safe and seamless operations.

ASME B16.11 Socket Weld And Threaded Forged Fittings

The ANSI B16.11 Threaded Pipe Fittings, on the other hand, are used in non-critical situations like industrial cooling systems, fire protection, etc.

There are different types of threaded fittings available in the market, like threaded elbow for changing the flow direction, threaded tee with three outlets, threaded cap for blocking the flow at the end of the pipe, etc. Each of them is designed for specific purposes.

We are one of the top Forged Fittings Manufacturers In India. We produce high-quality products at a very reasonable price according to the requirements of the client.

ASME B16.11 Socket Weld And Threaded Forged Fittings

Forged Fittings Exporter Manufacturer in UAE, Australia, Bahrain, Europe, Germany, Kuwait, India, Qatar & More

August 24, 2022 by Creative Piping Creative Piping

Forged Fittings Exporter in UAE, Australia, Bahrain, Europe, India

Forged Fittings Exporter Manufacturer in UAE, Australia, Bahrain, Europe, Germany, Kuwait, India, Qatar & More

Forged Fittings Exporter Manufacturer in UAE, Australia, Bahrain, Europe, Germany, Kuwait, India, Qatar & More: Creative Piping Solutions envision ourselves to be one of the most Reliable and Admired ASME B16.11 Forged Fittings Manufacturing companies in India by providing quality products to our valued customers in the least time.

We believe in adopting and Innovating Environment-friendly methods and materials. We offer a commendable range of Forged Fittings for distinguished clients at competitive prices, and we believe in Quality. We supply these Forged Fittings to various Industries publicly & Private Sector, Government & Semi-Government Department everywhere in India.

ASME 16.11 Forged Fittings:

ASME 16.11 Forged Fittings are available as Socket Weld Pipe Fittings and Threaded Pipe Fittings. Forged fittings are made from A105 (Carbon Steel), stainless steel, or nickel-base alloy. Forged Threaded Fittings are thicker, heavier, and are intended for heavy industrial use. Cast-iron Pipe Fittings are available in 2000#, 3000#, 6000#, and 9000# pressure classes. These Forged Threaded Fittings are more common in 3000# and 6000# (90% of the time).

Forged Iron Threaded: Forged Fittings Manufacturers

Forged Iron Threaded or Socket Weld Fittings are costlier in sizes bigger than 2 inches (ca. 5 cm) compared to their malleable iron or butt weld counterparts. Threaded Pipe Fittings and Socket weld Pipe Fittings are available up to 4 inches (ca. 10 cm) nominal pipe size. See the table below for the pressure and temperature rating of those Fittings. Forging steel is a process that makes very strong fittings. The heated steel is then machined into the forged steel fitting.

Forged Fittings Manufacturing Standards

ASME B16.11 – Socket Welding and Threaded Forged Fittings.
MSS SP-43 – Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications.
MSS SP-95 – Swage(d) Nipples and Bull Plugs.
BS3799 – Specification for Steel pipe fittings, screwed and Socket-welding for the petroleum industry.
ASTM A182 – ASME SA182 – Standard Specification for Wrought Austenitic Stainless Steel Piping Fittings.

Forged Fittings Exporter Manufacturer in UAE, Australia, Bahrain, Europe, Germany, Kuwait, India, Qatar & More.

Forged Fittings Manufacturers

August 18, 2022 by Creative Piping Creative Piping

Forged Fittings Manufacturers Exporters: Creative Piping Solutions (CPS)

Forged Fittings Manufacturers Exporters: Creative Piping Solutions (CPS) has one of the largest stockholdings of Duplex, Super Duplex and exotic alloy products in the market.

The company’s broad range of Stainless Steel Pipe fittings, Forged Fittings and Flanges is complemented by its collection of semi-finished products such as Steel Tee, Forged Steel Elbow, semi-finished Forged Pipe Fittings.

These are often key components of clients’ orders and CPS prides itself on its ability to be able to deliver them quickly and to the required specification.

Over the years the company has developed relationships with some of leading buyers, Importers, Exporters, and suppliers in UAE, Australia, Bahrain, Europe, Germany, Korea, Kuwait, Malaysia, Oman, Philippines, Qatar, Russia, Saudi Arabia, Scotland, Singapore, Africa, Thailand, Turkey, United Kingdom, United States, who have the same commitment to excellence.

This means that we are confident in the products which we supply and know we can rely on their quality and performance.

Super Duplex and exotic alloy

FORGED FITTINGS
All of the steel forged fittings that Creative Piping Solutions supplies are corrosion resistant and designed to operate in high-pressure environments. By ‘steel’, we are referring to stainless steel, duplex, super duplex and 6% Moly.

Forged Fittings Manufacturers Exporters: Creative Piping Solutions

We have a wide variety of fittings available, both in stock and bespoke made including:

45° elbows
90° elbows
Straight and reducing tees
Couplings
Half couplings
Caps
Plugs
Crosses

Forged steel fittings are available in both threaded and socket weld end connections.

Forged steel fittings are the fittings made by forged steel. The manufacturing process of forged steel fittings is detailed below.

Manufacturing of forged fittings

The manufacturers and mills that we source our forged fittings from are some of the most reputable in the industry. They work to the most exacting standards to ensure the quality of the products that they forge.

Drop forging is the most common manufacturing process of forged fittings. It is a processing method whereby a forging press is used to put pressure on metal blanks in order to obtain certain mechanical properties, and particular shapes and sizes. In general, the steel goes through some or all of the following processes in order to manufacturer the final product:

Forging billet blanking
Forging billet heating
Roll forging
Die forging forming
Trimming cutting
Punching
Correction
Intermediate inspection
Heat treatment
Metal cutting
Clear up
Final inspection

During their final inspection, steel forged fittings must pass through appearance and hardness tests, chemical composition testing, mechanical properties testing, and NDT testing, as well as any other testing that the end client requires.

Advantages of forged fittings

There are many advantages of forged fittings as opposed to casted fittings. These are as follows:

Due to the tight grain structure a forged fitting is mechanically stronger than a casted one
Forged products are not susceptible to cavities, cold pour problems, porosity or shrinkage
Forged fittings can use less expensive alloys but still retain very high strength
The microstructure of forgings means it has more wear resistance and therefore is less likely to become brittle.
Forged fittings can withstand higher pressures in more extreme conditions
Forged fittings have a longer and typically more reliable life expectancy than casted fittings
Forged fittings are usually less expensive than casted ones
Different types of forged fittings (applications and advantages)

Tees: Forged tees are a type of forged steel fitting that is used to combine or divide the flow of a liquid. Reducing Tees are a specific type of tee that allows for pipe size change. The run outlets of a tee are the two in-line outlets, and the branch is the third reducing outlet.

Elbows: A pipe elbow is a forged steel fitting that has been installed between two lengths of pipe or tube that allows a change of direction, usually by 90° or 45°. Reducing elbows can both simultaneously change flow direction and reduce flow diameter.

Couplings: Couplings are a forged steel fitting that is used to connect two lengths of pipe. One end is screwed into the pipe while the other end can be tightly inserted, or welded, onto the other end to pipe or vessel.

Unions: Unions are similar to a coupling but allow two lengths of pipe to be assembled and detached without causing any deformation to the pipes.

Bushings: Bushings are forged steel fittings that allow for a change in pipe size.

Caps: Caps are just as the name suggest – they cap the flow by being inserted over the end of the pipe.

Plugs: Similar to a cap, plugs stop the flow of a liquid in the pipe. They come in different head types, such as hex, square, and round.

Crosses: As you would expect, crosses are a 4-way fitting. They have one inlet and three outlets or vice versa and allow for four pipes to meet together. The diameter of the outlets and inlets can be the same or different.

Quality control

All the forged fittings that Creative Piping Solutions sources and supply meet the requirements of the oil, gas petrochemical, water treatment and other heavy industries.

Here is a full list of the forged fittings that we stock, in a range different exotic material:

Super Duplex (both F53 / F55)
Duplex (F51 / F60)
6% Moly (F44)
Stainless Steels (316L, 304L, 904L, 310, 321, etc)

Creative Piping Solutions’ forged fittings are manufactured in accordance with the American Society for Testing & Materials (ASTM) Standard as follows:

ASTM A182
The dimensional standard of the buttweld fittings we supply are in accordance with the American National Standards Institute (ANSI):

ANSI B16.11
MSS SP43
MSS SP75
In stock in our warehouses around the world, we have the following sizes available:

½” to 4” in pressure ratings 3000, 6000 and 9000lbs. Ends can be socket welded (SW) or threaded (MPT/BSPT).
As well as being able to provide these standard sizes and specifications, we can also source more bespoke fittings to fit our clients’ specific drawings or project requirements.

Creative Piping Solutions and Forged Fittings

The team at Creative Piping Solutions has supplied and stocked a wide range of forged fittings to our clients for many years. They are used extensively across a variety of industries such as Petrochemical, LNG, desalination, Oil & Gas, Mining.

We carry many forged fittings in stock in our warehouses across the globe but can also work with our network of manufacturers to produce bespoke products to our clients’ exacting specifications.

Creative Piping Solutions’ forged fittings have been fully tested to international standards to ensure we only supply the highest quality products. Speak to our sales team today to get the right information and best deals on forged fittings, Super Duplex and exotic alloy at Creative Piping Solutions (CPS).

Company Contact Details are given below:

Head Office

138/146, Grd Floor, Nirmal Niwas,
Sant Sena Maharaj Marg,
2nd Kumbharwada, Girgaon,
Mumbai-400004, Maharashtra, India

Factory

Plot No.G/3, Coal Depot,
Hutments Fosbery Road,
Mumbai – 400 015,
Maharashtra (India)

Get in touch

+ (91) – 9079367689
+ (91) – 22 6639 4505 / 22 6639 4506
sales@creativepiping.com

Website: creativepiping.com

July 29, 2022 by Creative Piping Creative Piping

Top leading Industrial Forged Fittings Manufacturers in Your City, State, Country

Top leading Industrial Forged Fittings Manufacturers in Your City, State, Country: Looking for a best Industrial Forged fittings Manufacturer near you, in your city, state, or country? if Yes then that’s great! you have landed on the right page.

We have a good news for you we at “creativepiping.com” offering best and good quality Industrial forged fittings at really affordable prices.

Also we would like to inform you that we are the best & leading Industrial Forged fittings Manufacturer, Suppliers and most trusted Flange dealers in steel field.

Types of few Industrial Forged fittings we are manufacturing and offering at lowest price

Socket Welding and Threaded Forged Fittings.
Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications.
Swage(d) Nipples and Bull Plugs.
screwed and Socket-welding for the petroleum industry.
Wrought Austenitic Stainless Steel Piping Fittings.

We guarantee that you will like the quality of our products and services and pricings.

Cities We Export and Supply Industrial forged fittings and Flanges

Mumbai
Thane
Navi Mumbai
Pune
Pimpri-Chinchwad
Vadodara
Kolkata
Gurgaon
Ahmedabad
New Delhi
Bengaluru
Chennai
Surat
New York
Caracas
Howrah
Sydney
Ahvaz
Karachi
Algiers
Chiyoda
Ankara
Ho Chi Minh City

Bhopal
Ulsan
Faridabad
Houston
Dubai
Seoul
Hyderabad
Singapore
Abu Dhabi
Tehran
Calgary
Noida
Riyadh
Vung Tau
Al Khobar
Atyrau
Lagos
Hanoi
Toronto
Hong Kong
Rajkot
Brisbane
Los Angeles

London
Coimbatore
Jakarta
Istanbul
Bangkok
Kuwait City
Sharjah
Muscat
Edmonton
Busan
Mexico City
Doha
Jeddah
Manama
Montreal
Thiruvananthapuram
Milan
Moscow
Dallas
Petaling Jaya
Ernakulam
Visakhapatnam
Ludhiana

Aberdeen
Cairo
Geoje-si
Perth
Santiago
Chandigarh
Indore
Kuala Lumpur
Rio de Janeiro
Dammam
Melbourne
Madrid
La Victoria
Granada
Courbevoie
Al Jubail
Port-of-Spain
Secunderabad
Gimhae-si
Haryana
Colombo
Lahore
Bogota

Countries We Export and Supply Industrial forged Fittings

India
Saudi Arabia
Bangladesh
United States
United Arab Emirates
Canada
Angola
Argentina
Austria
Azerbaijan
Pakistan
Peru
Chile
Yemen
Hong Kong
Croatia
Czech Republic
Estonia
South Africa
Nigeria
Mexico
Turkey

Spain
France
United Kingdom
Indonesia
Israel
Iran
Kuwait
Mexico
Malaysia
Nigeria
Serbia
Singapore
Taiwan
Gabon
China
Finland
Greece
Italy
Japan
Hungary
Algeria
Belarus
Belgium

Chile
Venezuela
Ecuador
Netherlands
Brazil
Colombia
Ghana
Iran
Denmark
Poland
Australia
Afghanistan
Bahrain
Portugal
Switzerland
Libya
Romania
Thailand
Bhutan
Bolivia
Bulgaria
Slovakia
Vietnam

Costa Rica
Egypt
Iraq
Jordan
Kazakhstan
South Korea
Sri Lanka
Lithuania
Norway
Oman
Philippines
Poland
Qatar
New Zealand
Sweden
Trinidad & Tobago
Tunisia
Ukraine
Kenya
Lebanon
Morocco
Mongolia
Russia

<h2>Reviews by Customers</h2>

Kup Singh Rathore
2022-07-22
Good quality stainless steel buttweld pipe fittings manufacturer in India
Stainless Steel
2022-06-29
Excellent quality stainless steel flanges and forged fittings manufacturers and exporters from India.
Mp Banna
2022-05-29
They are providing excellent quality in stainless steel forged fittings and flanges.
Bhavya Jain
2020-07-29
5 Star rating by customer

Top leading Industrial Forged Fittings Manufacturers in Your City, State, Country: Looking for a best Industrial Forged fittings Manufacturer

July 8, 2022 by Creative Piping Creative Piping

Forged Fittings Manufacturer – Socket Weld Fittings, Threaded Fittings

ASME 16.11 Forged Fittings are available as Socket Weld Pipe Fittings and Threaded Pipe Fittings. Forged fittings are made from A105 (Carbon Steel), stainless steel, or nickel-base alloy. Forged Threaded Fittings are thicker, heavier, and are intended for heavy industrial use.

Cast-iron Pipe Fittings are available in 2000#, 3000#, 6000#, and 9000# pressure classes. These Forged Threaded Fittings are more common in 3000# and 6000# (90% of the time).

Find more details at our FORGED FITTINGS PAGE HERE

Forged Fittings Manufacturer – Socket Weld Fittings, Threaded Fittings: Forged Iron Threaded or Socket Weld Fittings are costlier in sizes bigger than 2 inches (ca. 5 cm) compared to their malleable iron or butt weld counterparts.

Threaded Pipe Fittings and Socket weld Pipe Fittings are available up to 4 inches (ca. 10 cm) nominal pipe size. See the table below for the pressure and temperature rating of those Fittings.

Forging steel is a process that makes very strong fittings. The heated steel is then machined into the forged steel fitting.

Check what other says about Creative pipings.

Manufacturing Standards

ASME B16.11 – Socket Welding and Threaded Forged Fittings.
MSS SP-43 – Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications.
MSS SP-95 – Swage(d) Nipples and Bull Plugs.
BS3799 – Specification for Steel pipe fittings, screwed and Socket-welding for the petroleum industry.
ASTM A182 – ASME SA182 – Standard Specification for Wrought Austenitic Stainless Steel Piping Fittings.

Find more details at our FORGED FITTINGS PAGE HERE

June 17, 2022 by Creative Piping Creative Piping

Trusted #1 ASME B16.11 Forged Fittings Manufacturer Mumbai India

Trusted #1 ASME B16.11 Forged Fittings Manufacturer Mumbai India: Looking for a trusted forged pipe-fitting Manufacturer near you, in your city, state, or country?
if Yes then that’s great! good news you have landed on the right page.

We have a good news for you we at “creativepiping.com” offering ASME B16.11 Forged Fittings at really affordable prices.

Also we would like to inform you that we are the best & leading ASME B16.11 Forged Fittings Manufacturer, Suppliers and most trusted exporter in steel industry in India.

Types of ASME B16.11 Dimensions we are offering at lowest price:
45 Degree Elbow Dimensions
90 Degree Elbow Dimensions
Bushing Dimensions
Cap Dimensions
Cross Dimensions
Full Coupling Dimensions
Half Coupling Dimensions
Hex Head Plug Dimensions
Round Head Plug Dimensions
Square Head Plug Dimensions
90D Street Elbow Dimensions
Tee Dimensions.

We guarantee that you will like the quality of our products and services and pricings.

Cities We Export and Supply Forged Steel Fitting

Mumbai
Thane
Navi Mumbai
Pune
Pimpri-Chinchwad
Vadodara
Kolkata
Gurgaon
Ahmedabad
New Delhi
Bengaluru
Chennai
Surat
New York
Caracas
Howrah
Sydney
Ahvaz
Karachi
Algiers
Chiyoda
Ankara
Ho Chi Minh City

Bhopal
Ulsan
Faridabad
Houston
Dubai
Seoul
Hyderabad
Singapore
Abu Dhabi
Tehran
Calgary
Noida
Riyadh
Vung Tau
Al Khobar
Atyrau
Lagos
Hanoi
Toronto
Hong Kong
Rajkot
Brisbane
Los Angeles

London
Coimbatore
Jakarta
Istanbul
Bangkok
Kuwait City
Sharjah
Muscat
Edmonton
Busan
Mexico City
Doha
Jeddah
Manama
Montreal
Thiruvananthapuram
Milan
Moscow
Dallas
Petaling Jaya
Ernakulam
Visakhapatnam
Ludhiana

Aberdeen
Cairo
Geoje-si
Perth
Santiago
Chandigarh
Indore
Kuala Lumpur
Rio de Janeiro
Dammam
Melbourne
Madrid
La Victoria
Granada
Courbevoie
Al Jubail
Port-of-Spain
Secunderabad
Gimhae-si
Haryana
Colombo
Lahore
Bogota

Countries We Export and Supply Forged Steel Fitting

India
Saudi Arabia
Bangladesh
United States
United Arab Emirates
Canada
Angola
Argentina
Austria
Azerbaijan
Pakistan
Peru
Chile
Yemen
Hong Kong
Croatia
Czech Republic
Estonia
South Africa
Nigeria
Mexico
Turkey

Spain
France
United Kingdom
Indonesia
Israel
Iran
Kuwait
Mexico
Malaysia
Nigeria
Serbia
Singapore
Taiwan
Gabon
China
Finland
Greece
Italy
Japan
Hungary
Algeria
Belarus
Belgium

Chile
Venezuela
Ecuador
Netherlands
Brazil
Colombia
Ghana
Iran
Denmark
Poland
Australia
Afghanistan
Bahrain
Portugal
Switzerland
Libya
Romania
Thailand
Bhutan
Bolivia
Bulgaria
Slovakia
Vietnam

Costa Rica
Egypt
Iraq
Jordan
Kazakhstan
South Korea
Sri Lanka
Lithuania
Norway
Oman
Philippines
Poland
Qatar
New Zealand
Sweden
Trinidad & Tobago
Tunisia
Ukraine
Kenya
Lebanon
Morocco
Mongolia
Russia

Contact Details:
Call us on: + (91) – 22 6639 4505 / 22 6639 4506
Email us at: sales@creativepiping.com

Order Indian Food in Canada

May 30, 2022 by Creative Piping Creative Piping

Beginners Guide: Forged Fittings and its Types

What is Forged Fittings??
Features of Forged Fittings

Types of Forged Fittings
Forged Pipe Fittings Applications and Size Ranges

Beginners Guide: Forged Fittings and its Types

What is Forged Fittings?

Forged steel fittings are actually a pipe fitting that are in fact made from a forged carbon steel, stainless steel, high nickel alloys material. And so, forging steel is a process that produces very strong fittings. However, carbon steel is heated to melting temperature and placed in the dies. The heated steel is then processed into forged steel fittings.

Features of Forged Fittings

Forged Fittings assures the industrial piping systems of a smooth run of liquid. They are made up of by using high-quality steel forgings, and thus they are very much high in performance and durability. These fittings sufficiently carry out those industrial requirements that demand extremely durable, qualitative, and reliable products.

Types of Forged Fittings

They usually come in two different forms – Forged Threaded Fittings and Forged Socket Weld Fittings. And further, these are sub-categorised divided into different types such as Elbow, Tee, Union, Cross, Coupling, Cap, Bush, and Plug.

Elbow Fittings

It is a type of fitting that is being mounted in between the two pipe or tube lengths for to allow the change in the route of a flow. And this picky change in the flow is usually being performed in either 90 Degree or 45 Degree route.

Socket Weld: 45° Elbow, 90° Elbow, 180° Elbow.
Threaded: 45° Elbow, 90° Elbow, 180° Elbow.

Tee Fittings

Comes in different forms such as Equal Tee, Unequal Tee, Reducer Tee and Lateral Tee, these Forged Tee Fittings are in fact a type of pipe fittings that has some T-shaped with two open outlets on it. And these outlets are usually at a 90 deg point for to connect the tangible main pipe line.

Socket Weld: Equal Tee, Reducing Tee.
Threaded: Equal Tee, Reducing Tee, Lateral Tee.

Cross Fittings

It is designed to provide a four way flow which navigates the fluids to a different direction. However, it is exclusively designed for several piping applications of various industries such as steel factories, chemical industries, petrochemical industry, fire protection systems, etc.

Socket Weld: Equal Cross, Reducing Cross.
Threaded: Equal Cross, Reducing Cross.

Coupling Fittings

Comes in different types such as Full Coupling and Half Coupling, these Forged Coupling Fittings are carefully tested and it makes sure to provide one of the supreme standard quality with presence of a sturdy circumstances.

Socket Weld: Half Coupling, Full Coupling.
Threaded: Full Coupling, Half Coupling.

Cap Fittings

Cap Fittings are usually hot dip stirred for mounting its service life. The different range of such fittings is widely used in liquid doling out industries due to their features of superlative permanence, first-rate corrosion resistant and high performance.

Socket Weld: End Cap.
Threaded: End Cap.

Bushing Fittings

Bushing pipe fitting is made up of by brass material and has a male National Pipe Taper (NPT) threaded connection and also a female National Pipe Taper (NPT) threaded connection. This fitting joins two pipes by means of different diameters allied to it, and has a hexagonal head for a big bearing facade when fixing with the fitting through a tug.

Threaded: Bushing.

Union Fittings

Union is accessible in varied sizes that ranges from 1/4″ NB to 4″ NB. And such range of unions is exceptionally long-lasting, resistant to corrosion and offers high end functionality.

Threaded: Union.

Plug Fittings

Plugs are at length used in varied application in different industries such as petrochemical, oil refineries, cement industry, chemical processing, and so on. They are relatively easy to install the pipe plugs for the separation of piping systems through testing, maintenance or repairing of the dented pipe lines. On the other side Forged Plugs are accessible in all kinds of Threaded Plug such as Bull, Round Head, Hex Head, Square Head, and so on.

Threaded: Plug.

Forged Pipe Fittings Applications and Size Ranges

Threaded Pipe Fittings are widely used in a lot of sectors of gas production and petrochemical industries. Other industries where such fittings can be used are in making pharmaceutical varieties of making equipment, vessels, oil refinery equipment, and so on. The typical applications for socket weld fittings are: Explosive fluids and gases, Long service / durable installations, Steam, Acids and toxic fluids.

These forged fittings are available in different sizes and pressure class. For instance, the size range of the 45 degree elbow and 90 degree elbow is 1/2” to 4”, and the pressure classes of the product ranges in 3000lbs, 6000lbs and 9000 lbs. Meanwhile, these fittings are designated as Class 2000, 3000, and 6000 for forged threaded fittings and Class 3000, 6000, and 9000 for forged socket-weld fittings.
